| 产品特性 : | 工控机电源 | 品牌 : | Chieftec 智拓 |
| 型号 : | GPE-700S 替代 GPC-700S 700W | 上市时间 : | 2008 |
| 货源类别 : | 现货 | 配件类型 : | 工控机电源 |
| 产品尺寸 : | 140mm x 150mm x 86mm | 产品重量 : | 1.65 |
| 快出货时间 : | 16-30天 | 发票 : | NO |
| 售后服务 : | 店面三包 | 包装清单 : | YES |
Chieftec GPE-700S 替代 GPC-700S 700W 工控机电源 工作站电源Chieftec GPC-700S 700W 工控机电源Chieftec GPE-700S 700W 工控机电源Chieftec智拓电源供应器Chieftec开关电源Chieftec工控机电源Chieftec一体机电源Chieftec工作站电源Chieftec台式机电源Chieftec服务器电源Chieftec医疗电源Chieftec视频会议电源等Chieftec智拓全线工业电源批发及电源维修

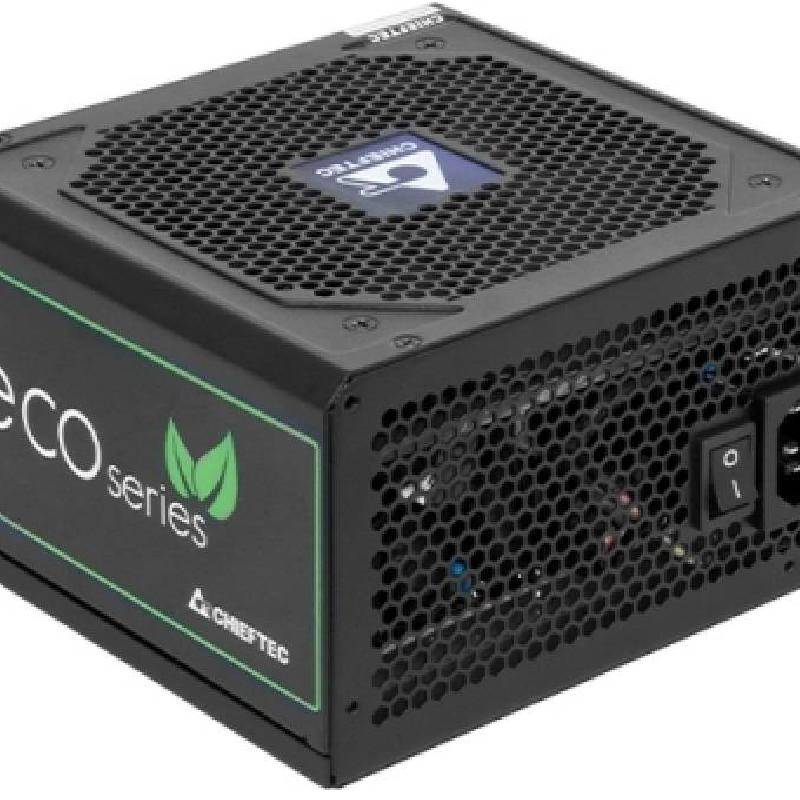

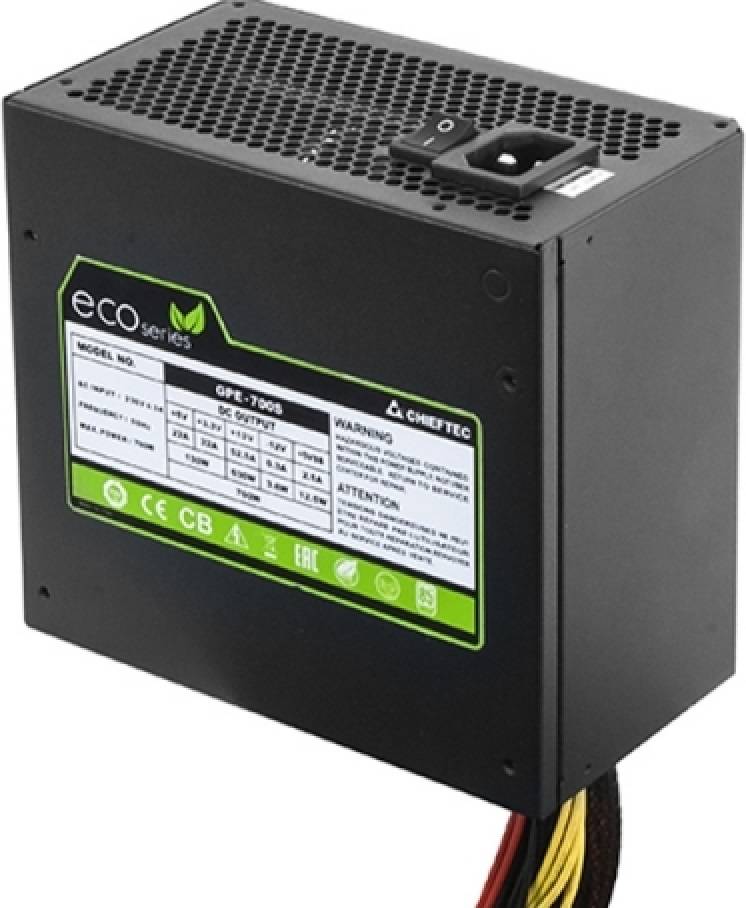

Chieftec GPE-700S 700W 工控机电源参数：
| Model | ECO 700W |
|---|---|
| Article no. | GPE-700S |
| EAN code | 471 |
| Weight (without/with package) | 1.55kg / 1.66kg |
| AC Input | 230V / 6.3A |
| Frequency | 50 Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 130W |
| +12V1 | 52.5A |
| +12V2 | - |
| +12V1, +12V2 combined | 630W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 700W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 2 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 550 |
| 8 PIN PCIe (6+2) | 450/150 |
| SATA | 2x 350/150/150 |
| MOLEX/FLOPPY | /150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |

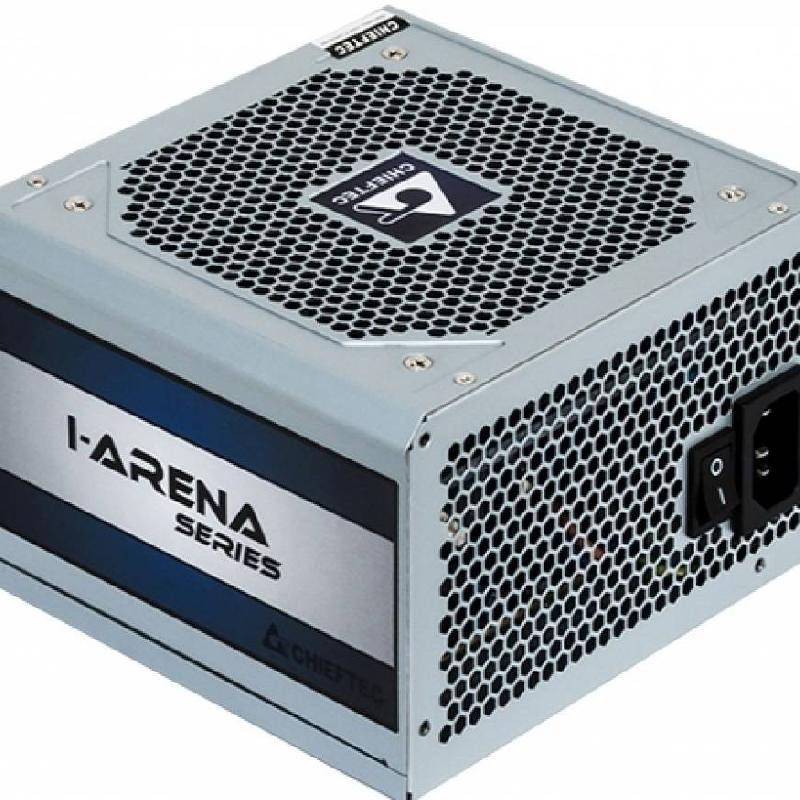

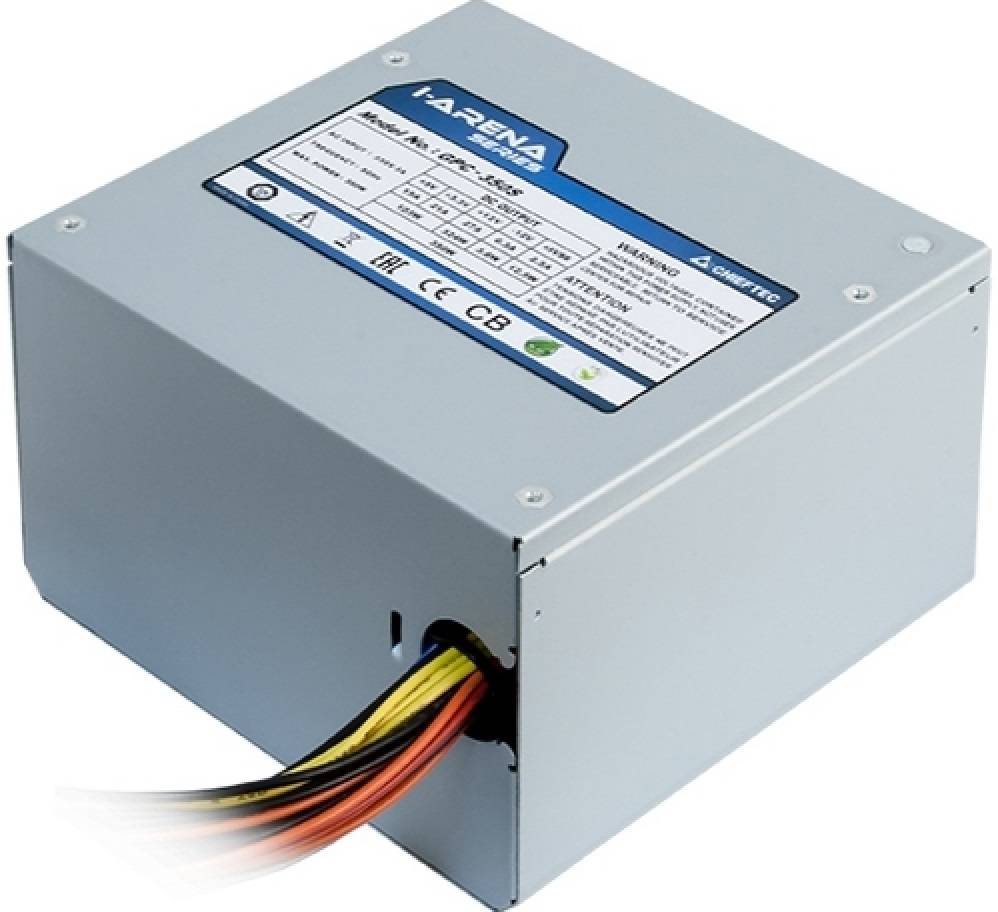

Chieftec GPC-700S 700W 工控机电源参数：
| Model | IARENA 700W |
|---|---|
| Article no. | GPC-700S |
| EAN code | 471 |
| Weight (without/with package) | 1.53kg / 1.65kg |
| AC Input | 230V / 6.3A |
| Frequency | 50 Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 130W |
| +12V1 | 52.5A |
| +12V2 | - |
| +12V1, +12V2 combined | 630W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 700W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 2 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 500 |
| 8 PIN PCIe (6+2) | 450/150 |
| SATA | 2x 350/150/150 |
| MOLEX/FLOPPY | /150 |
| ATX12V Version | ATX 12V 2.4 |
|---|---|
| Efficiency | 80% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
