| 是否有现货： | 是 | 自动化： | 全自动 |
| 种类： | 砂轮片切割机 | 电源电压： | 380V |
| 切割方式： | 树脂金刚切割片 | 型号： | Dfq-20nc |
| 规格： | Φ3-30 | 商标： | 鼎峰 |
| 包装： | 木箱 | 大小： | 1.5*1.6*1.2 |
| 产量： | 1000 |
鼎峰机械全自动钨钢圆棒切断机

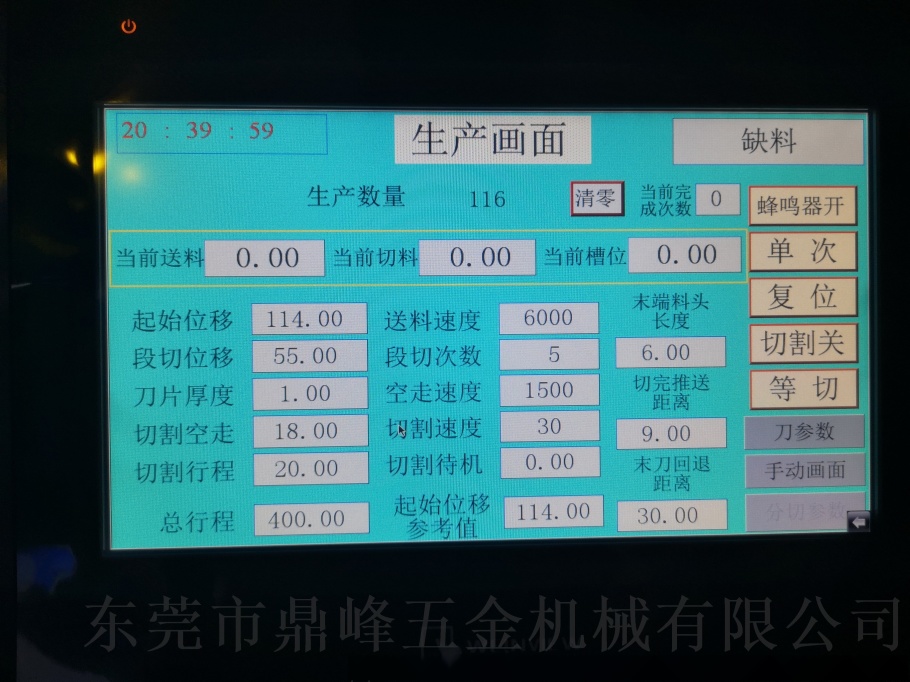

1.切割方式多样化：能实现一端平头、两端平头、等切和分切几种不同的切割方式，只需在界面上直接切换。Diversified cutting methods: it can achieve several different cutting methods, such as flat head at one end, flat head at both ends,.
2.切割侦测功能：切割片能自动实时检测损耗，自动损耗补偿。Cutting detection function: cutting piece can automatically detect loss in real time, automatic loss compensation
3. 的推料机构：切段长度精度为±0.05mm，批量尺寸一致。Precise pushing mechanism: the cutting length accuracy is 0.05mm and the batch size is consistent
4.端面无缺口、掉角：压料为切口前后两段同时压料 No notch or dropping Angle on the end face: The pressing material is the pressing material at the same time before and after the cutting
5.压料机构：每根料有独立压头，压料稳固。Unique press material mechanism: each material has independent press head, press solid.
| 6.切料端面垂直：切断后端面垂直平整、光洁度高，无需二次磨削。The end face of cutting material is vertical: after cutting, the end face is vertical and smooth with high finish, without the need of secondary grinding. |
5年来深扎于钨业切断的研究，专业生产切断精机，攻克切断之难题。 | 技术参数 Technical parameters | |||
| 型号规格 Specifications | DFQ-08F3 | 切料数量 Number of blanking | 3支 Three |
| 机械性能 Mechanical property | 全自动化切断 Full automatic cut-off | 送料行程 Feeding schedule | 480MM |
| 平衡式垂直切割、PLC系统 Balanced vertical cutting, PLC system | 料门宽度 Material door width | 400MM | |
| 主轴转速 Spindle speed | 最大切割直径 Max cutting diameter | Φ12 | |
| 主电机 Main motor | 2.2KW | 切割精度 Cutting accuracy | ±0.05 |
| 送料伺服 Feeding servo | 750W | 加工范围 Processing range | Φ3~Φ12 |
| 切料伺服 Blanking servo | 200W | 砂轮切割片Grinding wheel cutting pieces | Φ200xΦ25.4x1.0 |
| 外形尺寸 Boundary dimension | 1650x1500x950 | 机器重量 Machine weight | 1350KG |
