| 产品特性 : | 主机电源 | 品牌 : | Seasonic 海韵 |
| 型号 : | SS-650AM FSP650-80GLC FSP700-80PSA | 上市时间 : | 2015 |
| 货源类别 : | 现货 | 配件类型 : | 主机电源 |
| 产品尺寸 : | 160 x 150 x 86mm | 产品重量 : | 1.88 |
| 快出货时间 : | 1-3天 | 发票 : | NO |
| 售后服务 : | 店面三包 | 包装清单 : | NO |
Seasonic SS-650AM FSP650-80GLC FSP700-80PSA 工控机电源批发及主机电源维修
Seasonic M12II-650Bronze SS-650AM Active PFC F3 650W主机电源Seasonic M12II-750Bronze SS-750AM Active PFC F3 750W工控机电源Seasonic X-650 SS-650KM3 Active PFC F3 650W 台式机电源,电脑主机电源Seasonic海韵全线工业电源批发及专业电源维修
M12 Bronze - S seasonic Model ss-650 AM Activision PF F3
SeaSonic M12II 750 SS-750AM2 750W ATX12V / EPS12V SLI Ready 80 PLUS BRonZE Certified Modular Active PFC Full-modular Power Supply New 4th Gen CPU
SeaSonic M12II 750 SS-750AM2 750W ATX12V / EPS12V SLI Ready 80 PLUS BRonZE Certified Modular Active PFC Full-modular Power Supply New 4th Gen CPU Certified Haswell Ready
SeaSonic M12II 650W 750W Full-Modular Power Supply
FEATURES
DC to DC Converter Design
High Reliable 105? Japanese Brand Capacitors
Ample +12V Outputs
Active Power Factor Correction (99% PF Typical)
Smart & Silent Fan Control (S2FC)
12cm Ball Bearing Cooling Fan
Soft-Mount Rubber Cushions
Multi-GPU Technologies Supported
Full Modular
Easy Swap Connectors
Universal Ventilation (Hexagonal Structure)
5 Year Warranty
PRODUCT INFORMATION
1. Dimensions (L x W x H): 6.2 x 5.9 x 3.3 in. (160 x 150 x 86mm)
2. AC Input & DC Output Voltages (Full Range: 100 ~ 240V (Max 90 ~ 264V)
| Model | +3.3V | +5V | +12V | -12V | +5Vsb | Total Power |
| M12II 750 Bronze | 25A | 25A | 70A | 0.5A | 3A | 750W |
| 150W | 744W | 6W | 15W | |||
3. Wire Configuration

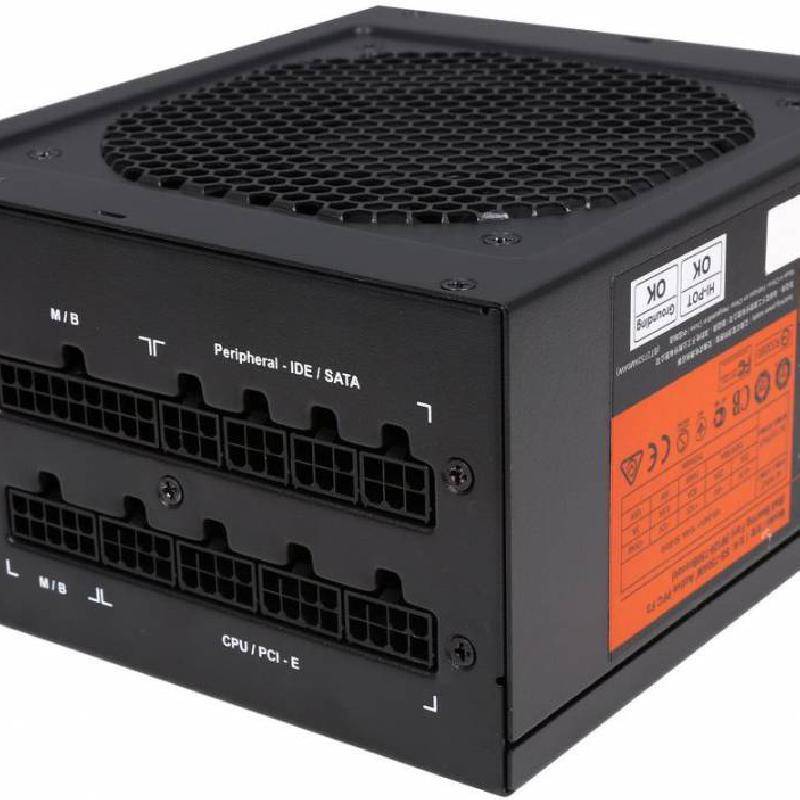

| Cable | 20 / 24-Pin Main Power | EPS12V / ATX12V (8-Pin / 4-Pin) | EPS 12V (8-Pin) | PCI-E (6-Pin / 8-Pin) | SATA | Peripheral (4-Pin) | FDD (4-Pin) |
| M12II 750 Bronze | 1 | 1 | 1 | 4 | 8 | 5 | 2 |
Seasonic M12II-650Bronze SS-650AM Active PFC F3 650W主机电源Seasonic M12II-750Bronze SS-750AM Active PFC F3 750W工控机电源Seasonic X-650 SS-650KM3 Active PFC F3 650W 台式机电源,电脑主机电源Seasonic海韵全线工业电源批发及专业电源维修
