| 产品特性 : | 工控机电源 | 品牌 : | Emacs 新巨 |
| 型号 : | PSM-5660V | 上市时间 : | 2008 |
| 货源类别 : | 现货 | 配件类型 : | Emacs Zippy台湾新巨工作站电源 服务器电源 |
| 产品尺寸 : | 32*18 | 产品重量 : | 1.88 |
| 快出货时间 : | 1-3天 | 发票 : | NO |
| 售后服务 : | 店面三包 | 包装清单 : | NO |

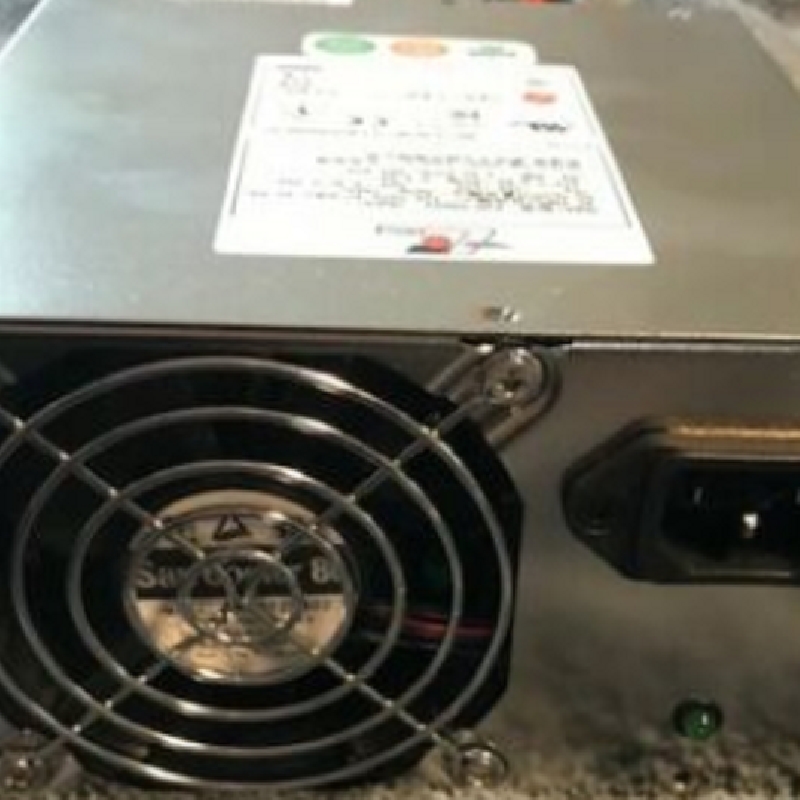

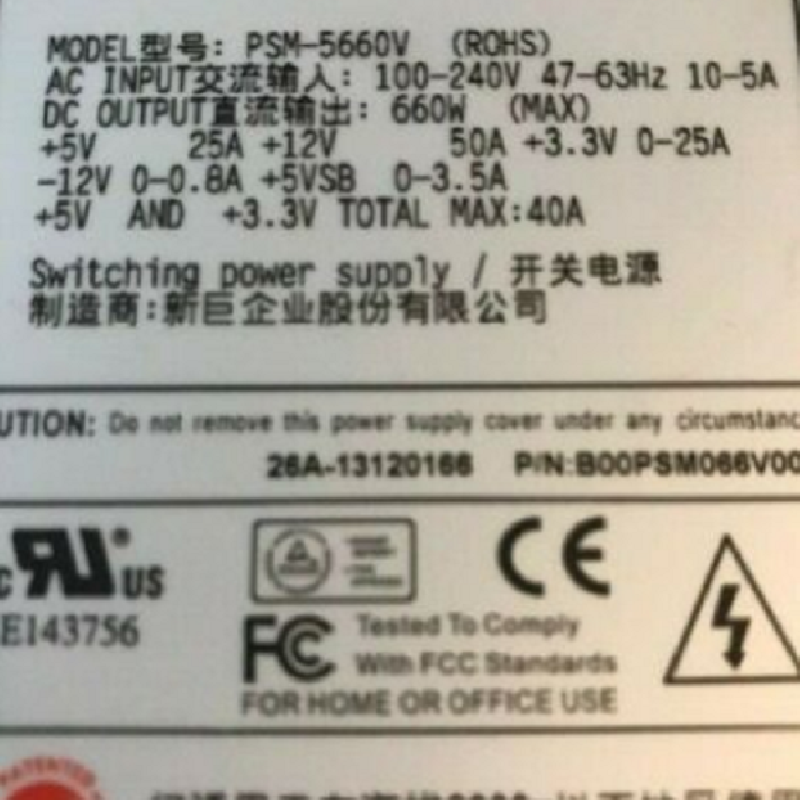

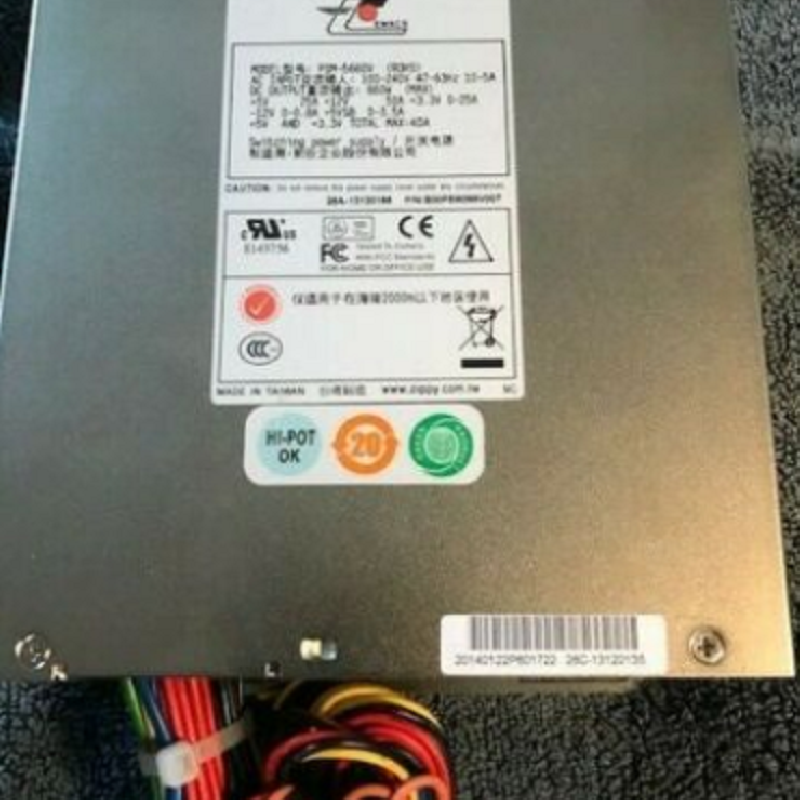

Emacs PSM-5660V 660W 2U 新巨 工控机电源 服务器电源批发Emacs 新巨 全线工业电源批发及电源维修

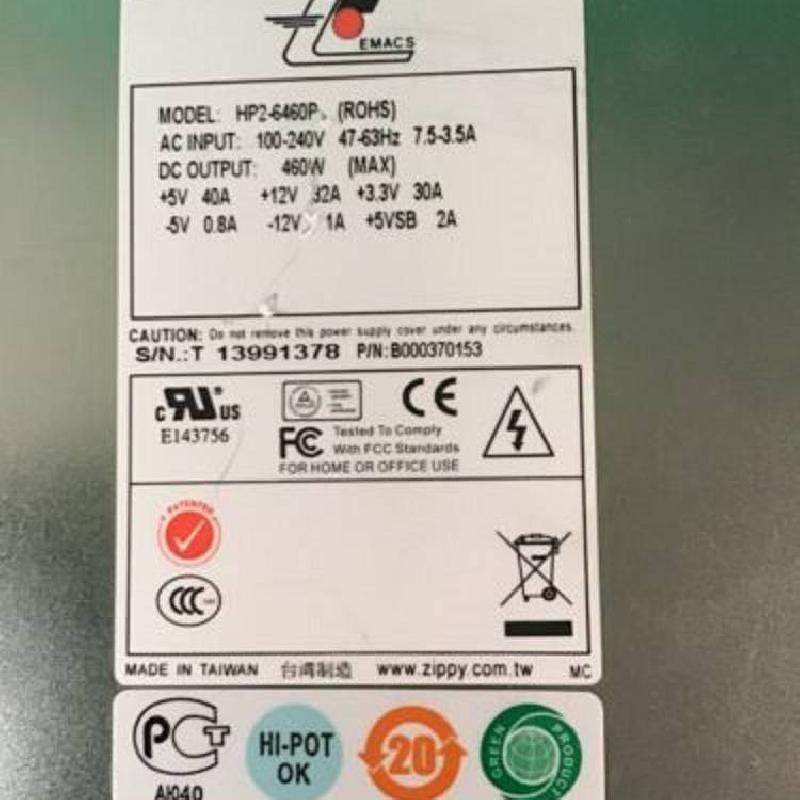

PSM-6600P HP2-6460P 600W 工作站电源 服务器电源 开关电源 交换式电源供应器Emacs Zippy台湾新巨工业电源批发及专业电源维修
PSM-6600P 600W 替代HP2-6460P服务器医疗设备电源 zippy Emacs新巨电源全系列批发
PSM-6600P |
| 600W ATX 2.03,ATX12V(P4),EPS12V,WTX,AMD-GES Server,Workstation,Storage System,IPC |
| 160.00x150.00x86.00 (mm) 6.29x5.91x3.39 (inch) VOLTAGE: 90 ~ 264 VAC FULL RANGE Output VoltageOutput Current Min.Output Current Max.Output Current PeakRegulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]5V0.530.00± 5%± 1%60mV12V11.526± 5%± 1%100mV12V2020± 5%± 1%100mV-12V00.8± 5%± 1%100mV3.3V0.530+5, -5%± 1%60mV+5VSB02± 5%± 1%60mV-5V00.8± 5%± 1%100mVREMARKS : WHEN IT PERFORMS CROSS REGULATION TEST, IT IS REQUESTED TO SET THE HIGHER OUTPUT CHANNEL AT 90% MAX. OF ITS SPEC., AND THE LOWER OUTPUT CHANNELS AT 20% MIN. OF THEIRS * Active PFC ( full range ) *12V Max. Current : 40A *TEMPERATURE RANGE : OPERATING 0℃ ~ 40℃, STORAGE –20℃ ~ 70℃ * HUMIDITY:OPERATING:20%-95%, NON-OPERATING:10%-95% * REMARKS:85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS *Regulation < 3 % *EMI : MEET FCC CLASS B, CISPR22 CLASS B *SAFETY: MEET UL 1950, CSA 22.2 NO/ 950, TUV IEC 950 *Cooling: ONE 80 mm DC FAN *BUILT-IN ACTIVE POWER FACTOR CORRECTOR *Serial ATA optional *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS |
HP2-6460P|PSM-6600P|SP2-4250F服务器电源EMACS新巨电源批发
产品特点
|
技术参数 |
输出功率(Output Wattage)：500W 执行规范（Connector Type）： ATX 2.03 /ATX12V (P4)/EPS12V/WTX/AMD-GES 解决方案（Best Solution for）： Server, Workstation, Storage, System, IPC 尺寸（Dimension）：140.00X150.00X86.00mm 5.51X5.91X3.39inch 交流电压输入规格：90 ~ 264 VAC全域电压 (AC Input Spec 90 ~ 264 VAC FULL RANGE) 直流电压输出规格（DC Output Spec）：输出电压输出电流***小.输出电流范围负载调整范围线性调整输出涟波和杂讯[P-P]5V2.540.00± 5%± 1%60mV12V132.00+5%± 1%100mV-5V00.80±5%± 1%100mV-12V01.00±5%± 1%100mV3.3V130+ 5%, -5%± 1%60mV+5VSB0.12± 5%± 1%60mV |
PSM-6600PE 600W 4U 塔式工作站|服务器|工控机专用电源Zippy Emacs新巨电源全线批发
这款电源比PSM-6600P价格要贵，区别是PSM-6600PE是单路12V PSM-6600P是双路12V。
| PSM-6600PE 600W ATX 2.03,ATX12V(P4),EPS12V,WTX,AMD-GES Server,Workstation,Storage System,IPC |
| 160.00x150.00x86.00 (mm) 6.29x5.91x3.39 (inch) VOLTAGE: 90 ~ 264 VAC FULL RANGE Output VoltageOutput Current Min.Output Current Max.Output Current PeakRegulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]5V0.530.00± 5%± 1%60mV12V1.546± 5%± 1%100mV-12V00.8± 5%± 1%100mV3.3V0.530+5, -5%± 1%60mV+5VSB02± 5%± 1%60mV-5V00.8± 5%± 1%100mVREMARKS : WHEN IT PERFORMS CROSS REGULATION TEST, IT IS REQUESTED TO SET THE HIGHER OUTPUT CHANNEL AT 90% MAX. OF ITS SPEC., AND THE LOWER OUTPUT CHANNELS AT 20% MIN. OF THEIRS |
