| 加工定制 : | 是 | 品牌 : | 恒创利 |
| 型号 : | GM-30 GM-20 | 产品别名 : | 涂胶机 |
| 类型 : | 生产纸板 | 用途 : | 生产纸板 |
| 适用对象 : | 果汁饮料,碳酸饮料,酒类饮料,矿泉水、纯净水,护发用品,护肤品类,化妆品类,药水,酸奶,鲜奶,酱类,油类,奶茶,其他 | 包装类型 : | 纸板 |
| 售后服务 : | 上门售后 | 地址 : | 沧州 |

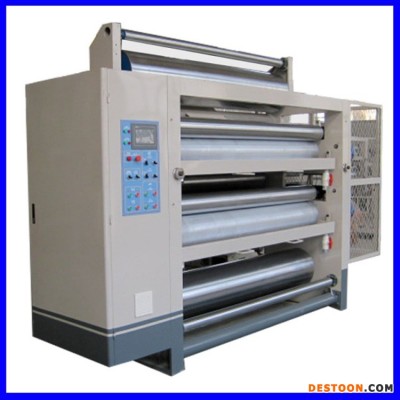

ⅰ、Structural features结构特点：
★After the surface of cots is adjusted and tempered, the inner hole is processed, the dynamic balance surface is polished and there are 32 lines of concave net pattern, the glue is uniform and the amount of glue consumption is less.
涂胶辊表面经调质后，内孔加工，做动平衡表面精磨并刻有32线凹坑式网纹，涂胶均匀，耗胶量少。
★The rotation of the cots is controlled by the variable frequency motor and frequency conversion, and the frequency control ensures that the linear speed of the cots is synchronized with the two sides, and it can operate independently.
涂胶辊的转动由变频电机加变频控制，由变频控制保证涂胶辊的线速度与双面机同步，又可以独立运转。
★Coating electric adjustment glue amount of digital display. Automatic circulation of glue, can effectively control the amount of glue, avoid glue precipitation, ensure good glue and save glue.涂胶电动调整胶量数显。自动循环供胶，能有效控制胶量，避免胶水沉淀，保证良好的胶水和节约胶水。
★All roller surfaces are ground after hard chromium plating.
所有辊轴表面均经过磨削处理后镀硬铬。
★ The speed signal of double-sided machine is measured to realize synchronous operation with it. The rubber coating machine is displayed with man-machine interface, which can be used for data setting and easy to operate.
测取双面机速度信号，以实现与其同步运转。涂胶机采用人机界面显示，可进行相关数据设定，操作简便快捷。
★Electrical design, construction production process, follow the national standards, low failure rate, easy maintenance。
电器设计、生产施工工艺，遵循国家标准规范，故障率低，维护简单。
ⅱ、Technical parameter技术参数：
★Effective width：1800mm 工作幅宽：1800mm
★Operation direction：left or right（determined in accordance with customer plant）
操作方向：左置或右置（根据客户厂房确定）
★Design speed：150m/min 设计速度：150m/min
★Gas supply system：0.4—0.6Mpa 气源系统：0.4—0.6Mpa
★Preheat cylinder temperature range：150—200℃ 预热缸温度范围：150—200℃
★Steam pressure:0.8—1.2Mpa 蒸汽压力：1.12—1.3Mpa
ⅲ、Roller diameter parameter辊类直径参数：

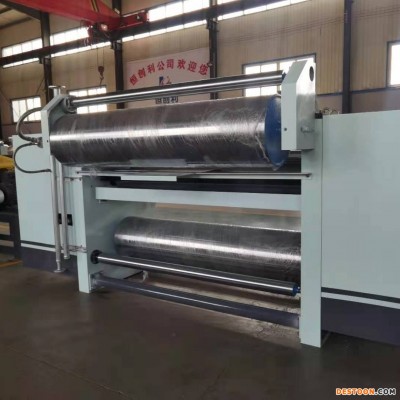

★Glue roller diameter：￠269mm 涂胶辊直径：￠269mm
★Doctor roller diameter：￠142mm 定糊辊直径：￠142mm
★Over the paper roll diameter：￠110mm 过纸辊直径：￠110mm
ⅳ、Powered motor parameters动力电机参数：
★Glue roller initiative frequency motor：3KW 涂胶辊主动电机： 3KW
★Sizing Reducer:：250W 胶量调整减速机： 250W
★Pressure roller clearance adjustment motor： 250W 压力辊间隙调整电机： 250W
★Glue pump motor：2.2KW 胶泵电机：2.2KW
