是否进口 |
否
|
产品种类 |
考勤门禁机
|
品牌 |
中控ZKTeco
|
型号 |
F18
|
存储量 |
100000(条)
|
通讯接口 |
TCP/IP RS485
|
感应方式 |
指纹、密码
|
电源功率 |
12V(W)
|
环境温度 |
0-40(℃)
|
识别方式 |
指纹
|
屏幕显示 |
彩屏
|
产品介绍:

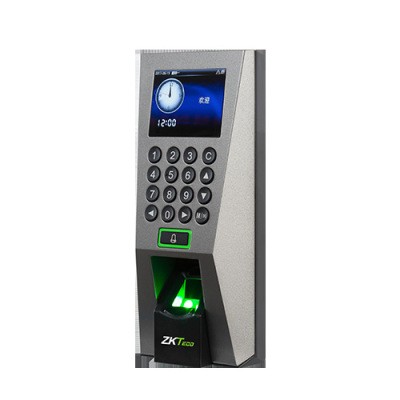

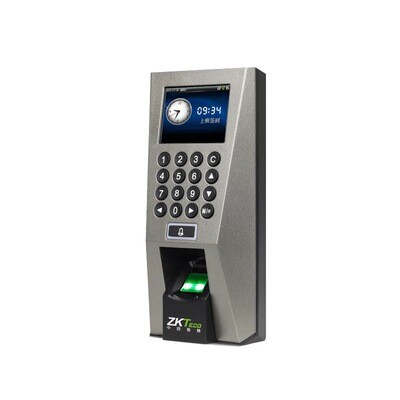

F18是中控科技推出的一款彩屏专业指纹门禁机,32位主频400MHz 高速CPU ,128M flash 32M RAM内存,该产品采用高贵典雅的欧美设计风格,设计上严格遵循国家安全防范产品标准,采用大量进口元器件,出厂经过严格的老化测试,产品稳定可靠。该产品同时具有TCP/IP及RS485通讯方式,满足各种不同的网络环境,适合于小型办公环境、企业内部等场所。

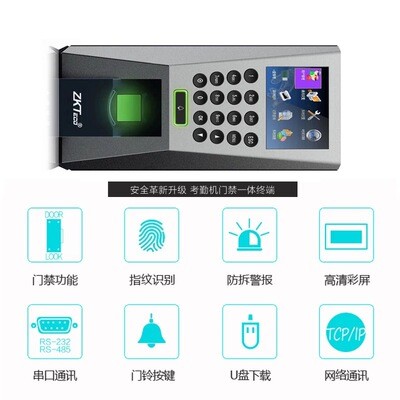

产品特点:
◆2.4寸彩屏显示
◆TCP/IP和RS485通讯可选
◆自带门铃大按键
◆U盘功能,可上传下载记录等
◆支持指纹/ID卡/MF卡,使用范围广,可选配Mifaer卡ID卡功能
◆背光数字及功能键,可夜间操作
◆具有weigand in &out接口,既可外接读头也可做为门禁读头使用
产品规格:
CPU |
基于ZEM720 核心板,400M主频 |
存储 |
128MB flash + 32MB RAM |
指纹采集器 |
小光学指纹头 |
比对速度 |
3,000 matches in 1 second(10.0算法) |
指纹容量 |
1500 fingerprints |
记录容量 |
50,000 |
射频卡 |
EM(125 KHz), Mifare (13.56 MHz),可选 |
卡容量 |
10000 |
通讯接口 |
TCP/IP, RS485 |
Wiegand |
支持一路Wiegand输入,一路Wiegand输出 |
输入 |
两路输入:出门开关/门磁各一个 |
输出 |
一路门锁、一路报警 |
门铃 |
有线门铃内置,自带门铃大按键,门铃按键带背光,可做指示灯 |
LCD |
2.4寸彩屏 |
键盘 |
微动开关键盘 |
语音 |
喇叭 |
U盘功能 |
支持U盘功能 |
WIFI |
选配 |
外观大小 |
183*80*42mm |
外观材料 |
ABS塑料 |
接口接线方式 |
标准 |
工作电压 |
12VDC |
工作温度 |
0℃~ 45℃ (-5℉ ~ 122℉) |
F18 is in the control of science and Technology launched a color screen professional fingerprint access control, 32 frequency 400MHz high speed CPU, 128M flash 32M RAM memory, this product adopts the noble and elegant European and American design style, design strictly follow the nationalsecurity product standards, the use of a large number of imported components, the factory throughstrict aging test, stable and reliable product. The product also has TCP/IP and RS485 communication, to meet a variety of different network environment, suitable for small office environment, the enterprise internal and other places.
TCP/IP and RS485 communication optional
It comes with a large key doorbell
The U disk function, can upload and download records
Support the fingerprint /ID card /MF card, the use of a wide range of optional Mifaer card, ID card function
The backlit digital and function keys, can be the night operation
It has a Weigand in &out interface, can be external read head can also be used as a reading head using access control
